AGGREGATE HOPPERS

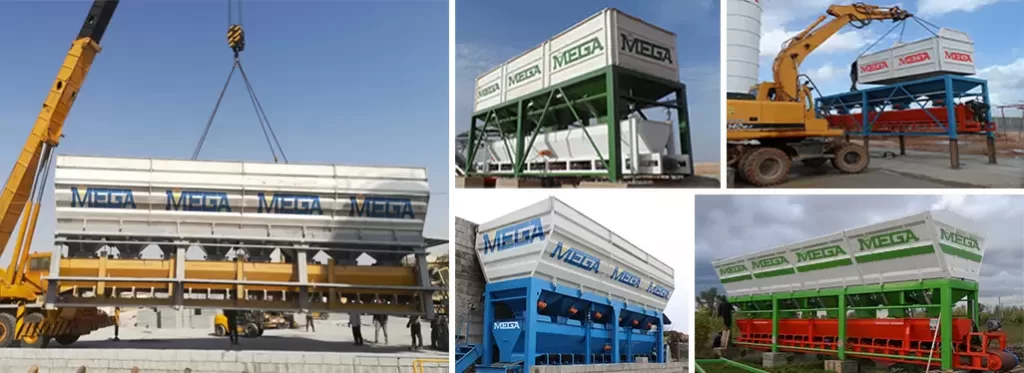

Aggreaget Hoppers: It is the area where raw materials such as sand, gravel, gravel, aggregate are stocked in ready mixed concrete production. There is a weighing band at the bottom. As Mega Concrete Batching Plants, we manufacture the bunkers in accordance with ISO 9001 quality and all DIN norms, in the desired dimensions and dimensions, in such a way that they can weigh sensitively. The body material is made of twisted sheet metal, the side covers are hinged and each chamber has the features of a vibro motor. The hopper covers are under automation control and are pneumatically driven. You can increase your capacity at any time with its extra caps. In addition, with our special bunker design, we save you a lot of shipping costs. With our 24/7 customer support service, we produce instant solution-oriented results against the problems that may occur. Our raw material bunkers are guaranteed for 3 years.
3 SECTION AGGREGATE HOPPERS TYPES
24 m³ Aggregate Hoppers
| CAPACITY | 3×8 m³ = 24 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X150 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 3×1 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø80×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 3 – AVIBRO – WITH CARRY HANDLE |
15,109 $
12,842 $
45 m³ Aggregate Hoppers
| CAPACITY | 3×15 m³ = 45 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 3×2 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø80×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 6 – AVIBRO – WITH CARRY HANDLE |
25,031 $
21,276 $
60 m³ Aggregate Hoppers
| CAPACITY | 3×20 m³ = 60 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 3×2 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø100×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 6 – AVIBRO – WITH CARRY HANDLE |
27,093 $
23,029 $
75 m³ Aggregate Hoppers
| CAPACITY | 3×25 m³ = 75 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 3×4 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø100×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 12 – AVIBRO – WITH CARRY HANDLE |
33,709 $
28,652 $
90 m³ Aggregate Hoppers
| CAPACITY | 3×30 m³ = 90 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 3×4 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø100×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 12 – AVIBRO – WITH CARRY HANDLE |
39,613 $
33,671 $
4 SECTION AGGREGATE HOPPERS TYPES
32 m³ Aggregate Hoppers
| CAPACITY | 4×8 m³ = 32 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X150 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 4×1 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø80×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 4 – AVIBRO – WITH CARRY HANDLE |
20,122 $
17,103 $
60 m³ Aggregate Hoppers
| CAPACITY | 4×15 m³ = 60 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 4×2 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø80×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 8 – AVIBRO – WITH CARRY HANDLE |
35,926 $
30,537 $
80 m³ Aggregate Hoppers
| CAPACITY | 4×20 m³ = 80 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 4×2 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø100×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 8 – AVIBRO – WITH CARRY HANDLE |
38,571 $
32,785 $
100 m³ Aggregate Hoppers
| CAPACITY | 4×25 m³ = 100 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 4×4 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø100×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 16 – AVIBRO – WITH CARRY HANDLE |
47,604 $
40,463 $
120 m³ Aggregate Hoppers
| CAPACITY | 4×30 m³ = 120 m³ |
| UPPER CHAMBER | BOLT – DISASSEMBLY – 3 mm SPECIAL BENDING SHEET + SUPPORT PROFILE |
| CHASSIS TECHNICAL SPECIFICATIONS | 150X250 5 mm SQUARE PROFILE |
| DISCHARGE FUNNEL | 4 mm + 3 mm REINFORCED – REPLACEABLE WEAR PLATE |
| BEARING COVER | PILLOW BLOCK UCP 206 |
| DISCHARGE GATE | 4×4 PIECES |
| COVER DRIVE AND CONTROL | PNEUMATIC PISTON – ø100×320 FENITSA / LOCKED VALVE – 24 V DC |
| VIBROMOTOR | AVM 300/3 x 16 – AVIBRO – WITH CARRY HANDLE |
