CEMENT SCREW CONVEYORS

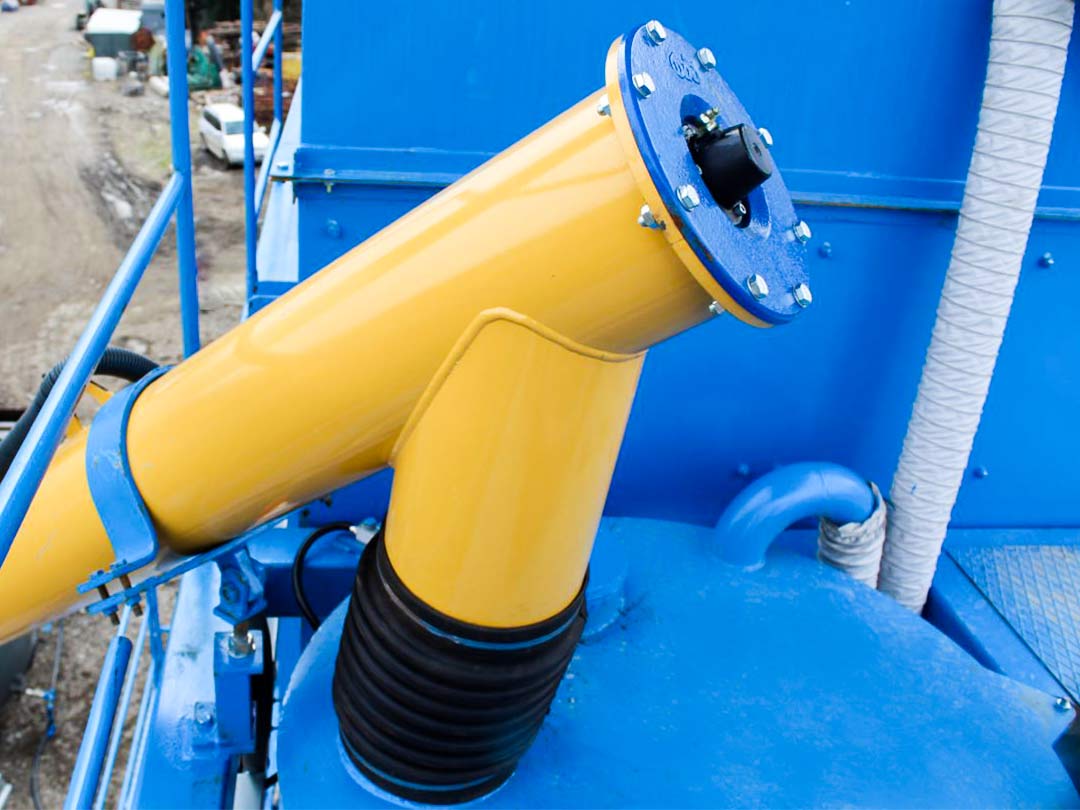

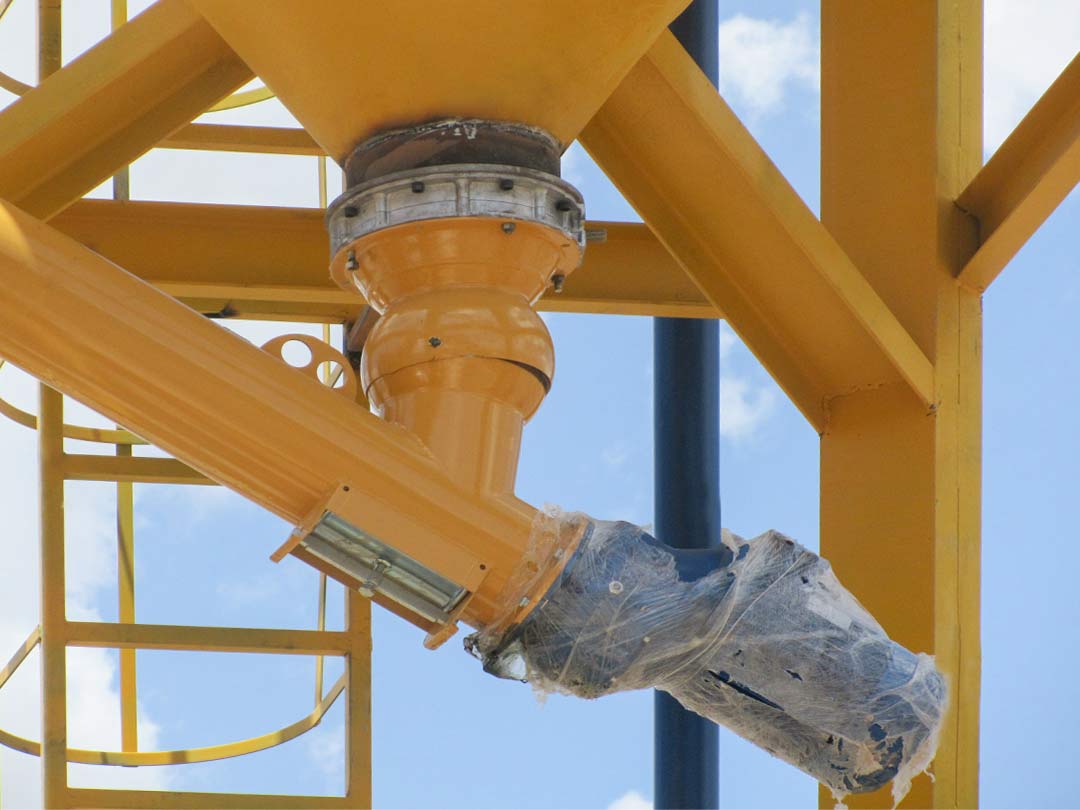

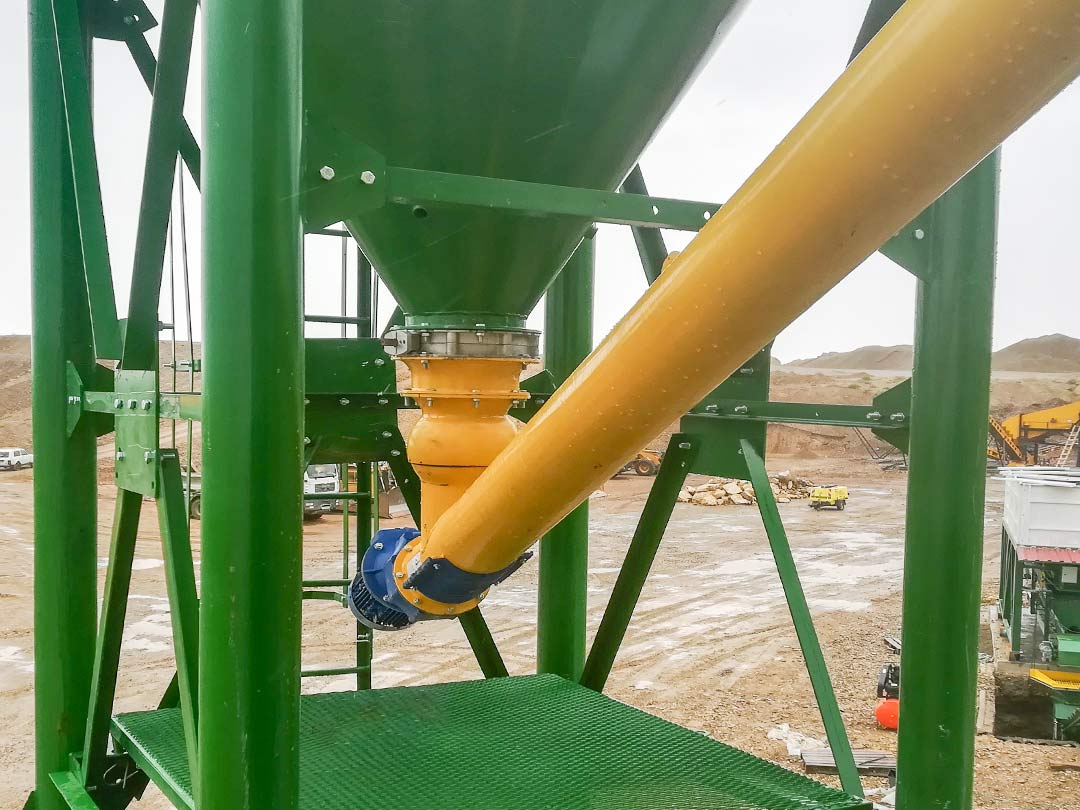

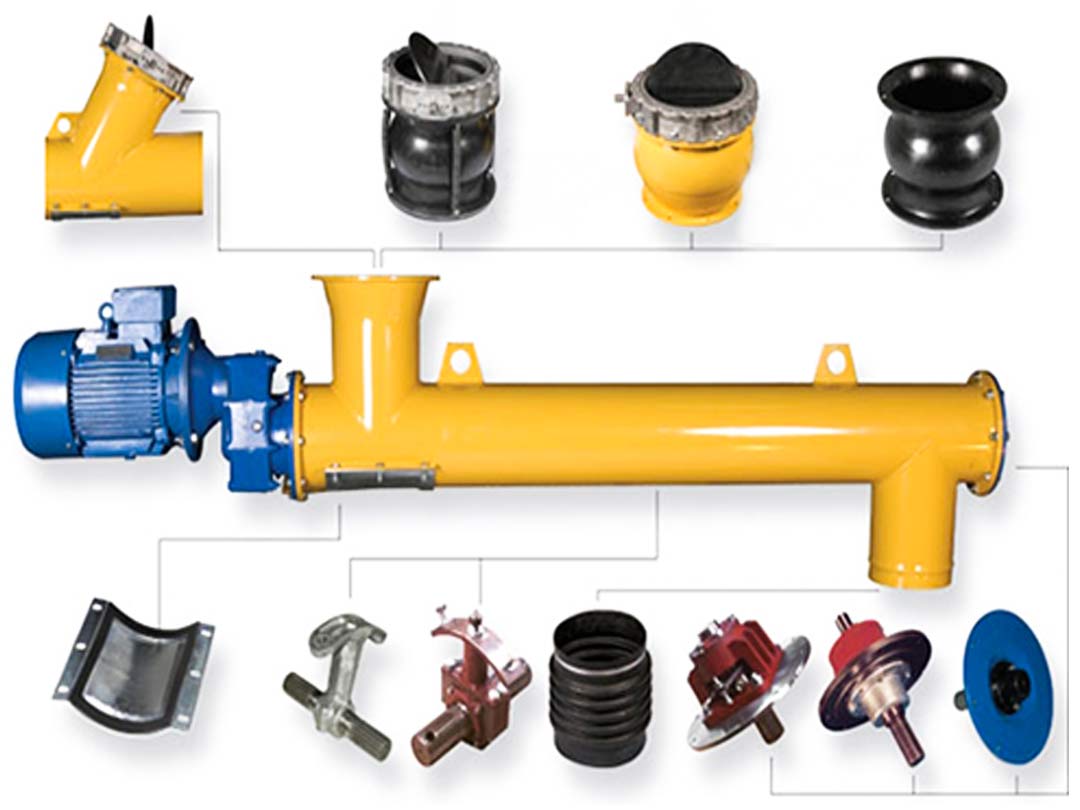

Cement screw conveyors are the equipment that carries the cement to be used for the mortar from the silo to the weighing system. According to your request, production is made by our company in various capacities and sizes. The place where the helix is connected to the cement silo is mobile and has the ability to rotate 360 degrees easily. Made of durable materials. It does not require extra maintenance. In addition to superior manufacturing technology, long life and trouble-free operation have been achieved thanks to increased helix and pipe thicknesses. Different electric motor options and high efficiency, silent gearbox units are used. For all inlet and outlet options, clapper connection flanges are available upon request.
SCREW CONVEYORS TYPES
6 m Screw Conveyor
| CAPACITY AND OPERATING ANGLE | 18 TONS / HOUR / 30-40° |
| BODY TECHNICAL SPECIFICATION | 8 ” SEAMLESS PIPE X 6 m |
| FILLING PORT | 12 ” UNIVERSAL |
| DISCHARGE | 8 ” FIXED ANGLE |
| INTERMEDIATE BEARING | REPLACEABLE MILLING ATTACHMENT – LUBRICABLE |
| MAINTENANCE COVER | UNDER THE MOTOR |
| DRIVE | 7,5 KW GEAR MOTOR |
| PAINT | 1 LAYER PRIMER – 1 LAYER RAPID PAINT |
9 m Screw Conveyor
| CAPACITY AND OPERATING ANGLE | 18 TONS / HOUR / 30-40° |
| BODY TECHNICAL SPECIFICATION | 8 ” SEAMLESS PIPE X 9 m |
| FILLING PORT | 12 ” UNIVERSAL |
| DISCHARGE | 8 ” FIXED ANGLE |
| INTERMEDIATE BEARING | REPLACEABLE MILLING ATTACHMENT – LUBRICABLE |
| MAINTENANCE COVER | UNDER THE MOTOR |
| DRIVE | 11 KW GEAR MOTOR |
| PAINT | 1 LAYER PRIMER – 1 LAYER RAPID PAINT |
12 m Screw Conveyor
| CAPACITY AND OPERATING ANGLE | 32 TONS / HOUR / 30-40° |
| BODY TECHNICAL SPECIFICATION | 12 ” SEAMLESS PIPE X 12 m |
| FILLING PORT | 14 ” UNIVERSAL |
| DISCHARGE | 12 ” FIXED ANGLE |
| INTERMEDIATE BEARING | REPLACEABLE MILLING ATTACHMENT – LUBRICABLE |
| MAINTENANCE COVER | UNDER THE MOTOR |
| DRIVE | 22,5 KW GEAR MOTOR |
| PAINT | 1 LAYER PRIMER – 1 LAYER RAPID PAINT |
