PAVER & BLOCK MACHINE CONCRETE PLANT EQUIPMENTS

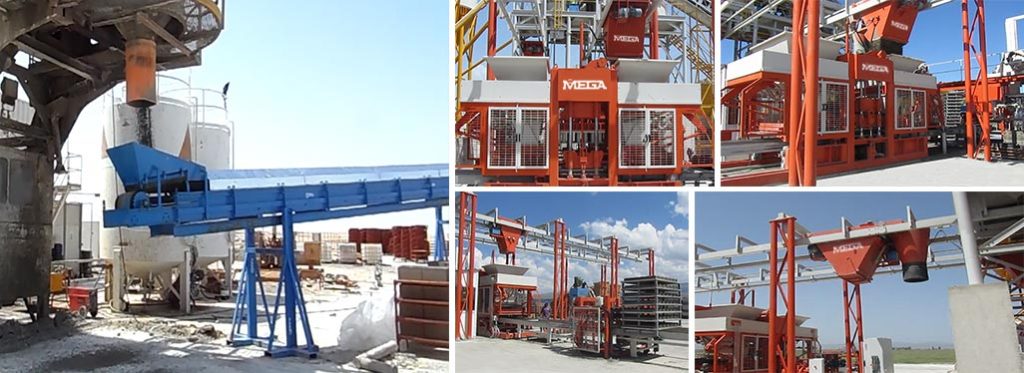

There are 2 different methods for you to use your concrete plant and your paver & block machine together. Conveyor belt system and overhead line system. Conveyor Belt System: The mortar prepared by mixing in the mixer is poured onto the conveyor belt from the outlet of the mixer. Then, the mortar is carried over the bucket of your paver & block machine by means of a band and empties it. Overhead Line System:  The mortar prepared by mixing in the mixer is discharged from the mixer’s outlet into the mortar carrying bucket located in the overhead line. Then the mortar carrying bucket carries the mortar onto the bucket of your paver & block machine and empties it.

CONVEYOR BELT SYSTEM

CAPACITY 50 TON / HOUR – BAND LENGTH 15 m
BAND FEATURE – SIZE 750 x 300 2.5 MM SPECIAL BENDING STEEL CHASSIS
BAND LEGS HEIGHT ADJUSTABLE – MOUNTED TO CONCRETE – 3 – 5 PIECES ( ACCORDING TO DISTANCE )
BELT SLIP BACKSTOP 24 VOLT AIR COOLED BRAKE SYSTEM
DRUM PULLEY BEARING SNH 211 – MOVING BALL BEARING
TENSIONER DRUM PULLEY BEARING UCT 210
CONVEYOR ROLLER ø60×300 BEARING WITH DUST RETAINING COVER
BAND SHIFT ( FORWARD – BACK ) 3 KW GEAR MOTOR. BEVEL GEAR TYPE -TAHRIKSAN
DRIVE 5,5 KW GEAR MOTOR. BEVEL GEAR TYPE – TAHRIKSAN

OVERHEAD LINE SYSTEM

CAPACITY 1 m³
LENGTH 24 METERS
OVERHEAD LINE CHASSIS NPU 180
OVERHEAD LINE LEGS SPECIAL MANUFACTURING STEEL. ONE FEET EVERY 6 meters
BEARING F TYPE BEARING ø70 mm
READY CONCRETE DISCHARGE CHUTE CAN BE ADJUSTED AS REQUIRED
DRIVE 5.5 KW BRAKE – DRIVER CONTROLLED
GEAR MOTOR
DISCHARGE GATE HYDRAULIC – OPENS FROM CENTER TO BOTH SIDES
MOTOR POWER 1.5 KW
