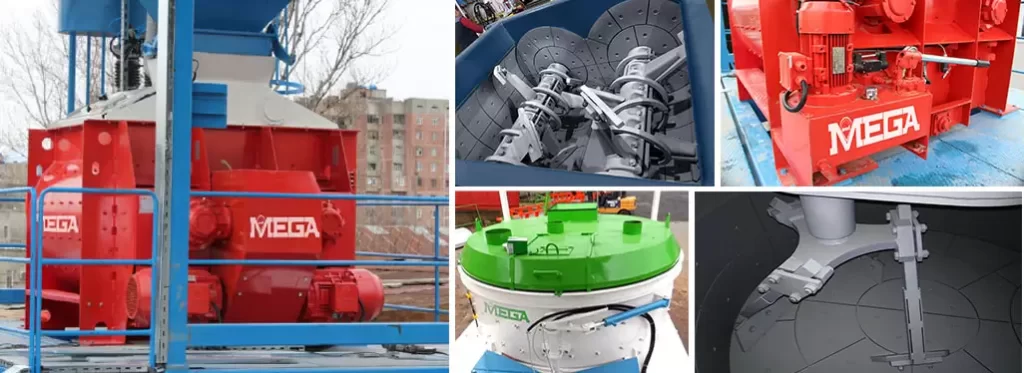

CONCRETE MIXERS
As Mega Concrete Plants, we use 3 different mixers in our facilities. PAN Type Mixer, PLANETARY Type Mixer, TWIN SHAFT Mixer. Mixers are the most critical and most important point of the concrete production work in terms of ensuring the mixing process in the shortest time and maximum homogeneity. In our mixers, mixing is provided in a minimum time, at low water-cement ratios and in such a way that all of the cement can come into contact with the aggregate. This is one of the important factors that increase the efficiency of the system. Our Twin Shaft Mixers perform automatic washing and lubrication. In addition, our Pan and Planet mixers have 3 different outputs. Thus, you can use the mortars you have prepared for both your truck mixer and your parquet-briquette machine. Our mixers are guaranteed for 3 years, and our Twin Shaft Mixers also have a 1-year wear plate warranty.
PAN AND PLANETARY CONCRETE MIXERS TYPES

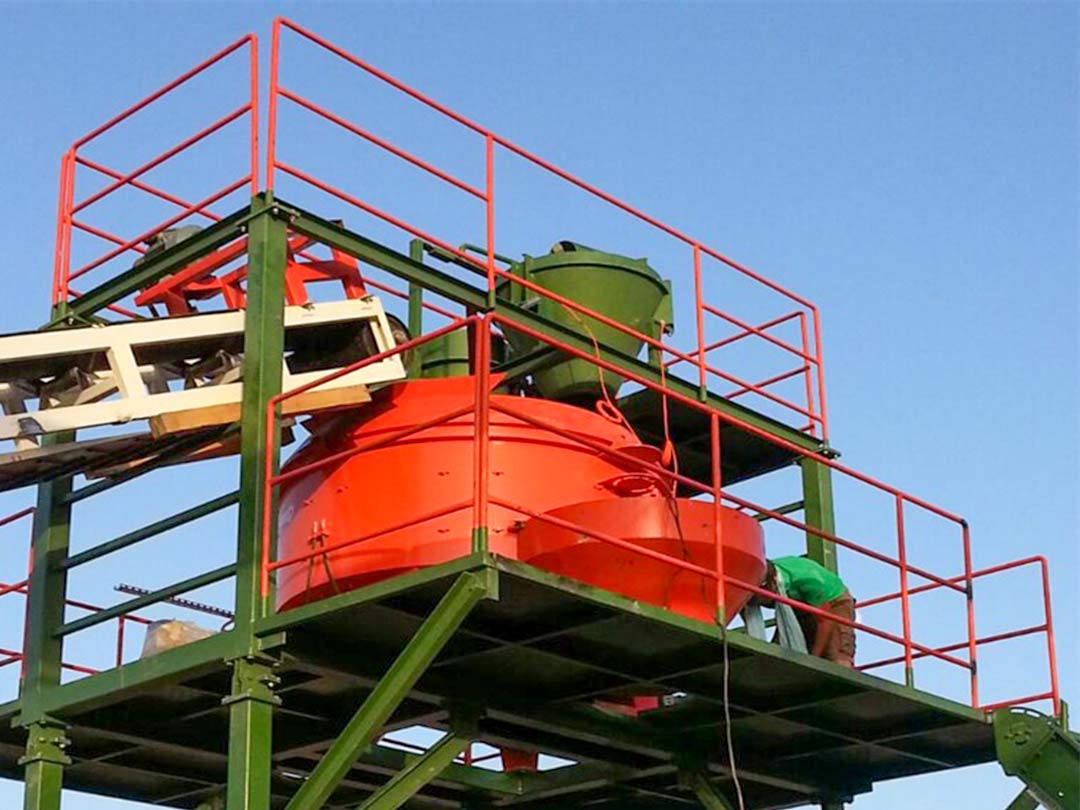

30 m3 / h Capacity Concrete Mixer
(Pan Type)
| MIXER TYPE | PAN MIXER (MADE IN TÜRKİYE) – 6 MIXER ARM |
| INTERNAL VOLUME CAPACITY | 750 L |
| WET CONCRETE CAPACITY | 500 L – TOTAL WEIGHT OF 1200 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 350 L – TOTAL WEIGHT OF 900 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | 3 OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 22 KW – WAT – GAMAK BRAND |
| REDUCER | DG 320 – DISSAN BRAND |
| BEARING | ø80 HUB BEARING |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 15 mm HARDOX – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 10 mm HARDOX – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE -BOLTED |
19,498 $
16,573 $

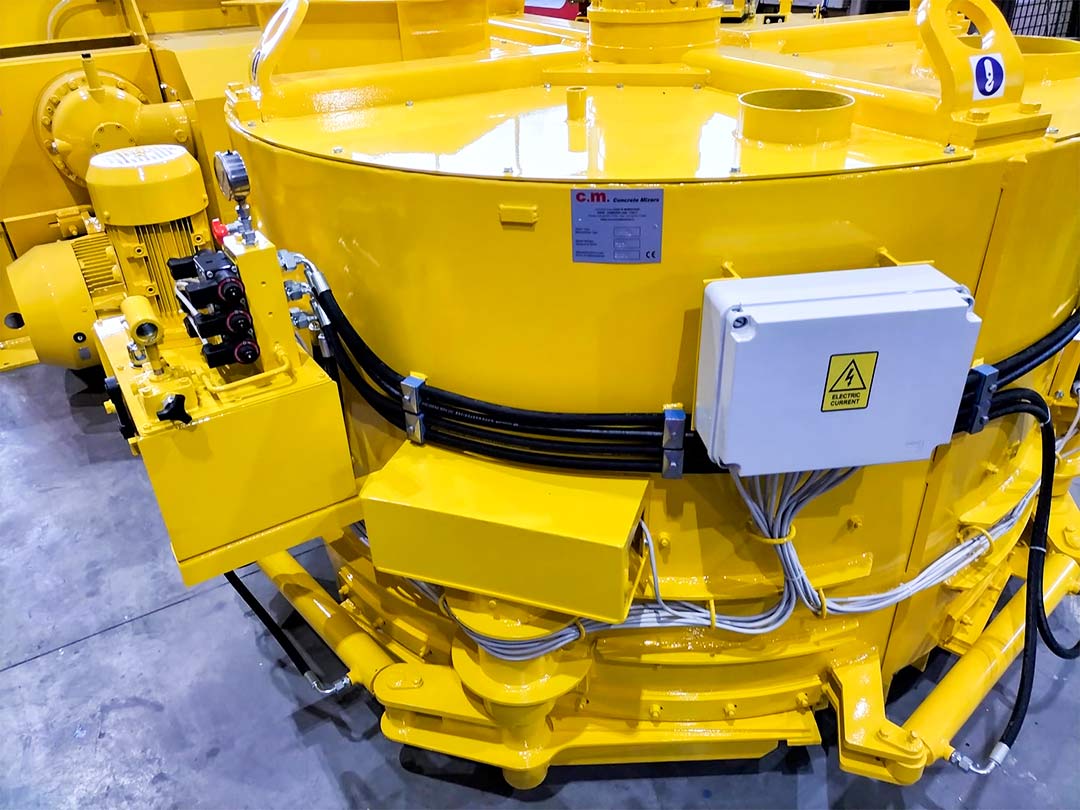

30 m3 / h Capacity Concrete Mixer
(Planetary Type)
| MIXER TYPE | PLANETARY MIXER (ITALIAN) – 3 MIXER FEETS – 1 SCRAPER BLADE |
| INTERNAL VOLUME CAPACITY | 750 L |
| WET CONCRETE CAPACITY | 500 L – TOTAL WEIGHT OF 1200 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 350 L – TOTAL WEIGHT OF 900 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | 3 OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 18,5 KW – ECHTOP IE2 |
| REDUCER | BREVINI – PLANETARY |
| BEARING | ø80 ON MIXER TOP CONNECTION |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 20 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 15 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE -BOLTED |
39,444 $
33,527 $
60 m3 / h Capacity Concrete Mixer
(Planetary Type)
| MIXER TYPE | PLANETARY MIXER (ITALIAN) – 3 MIXER FEETS – 1 SCRAPER BLADE |
| INTERNAL VOLUME CAPACITY | 1500 L |
| WET CONCRETE CAPACITY | 1000 L – TOTAL WEIGHT OF 2400 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 500 L – TOTAL WEIGHT OF 1200 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | 3 OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 45 KW – ECHTOP IE2 |
| REDUCER | BREVINI – PLANETARY |
| BEARING | ø100 ON MIXER TOP CONNECTION |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 15 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE -BOLTED |
52,651 $
44,753 $
90 m3 / h Capacity Concrete Mixer
(Planetary Type)
| MIXER TYPE | PLANETARY MIXER (ITALIAN) – 3 MIXER FEETS – 1 SCRAPER BLADE |
| INTERNAL VOLUME CAPACITY | 2250 L |
| WET CONCRETE CAPACITY | 1500 L – TOTAL WEIGHT OF 3600 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 800 L – TOTAL WEIGHT OF 1900 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | 3 OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 55 KW – ECHTOP IE2 |
| REDUCER | BREVINI – PLANETARY |
| BEARING | ø120 ON MIXER TOP CONNECTION |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 20 mm HARDOX – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 15 mm HARDOX – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE -BOLTED |
62,520 $
53,142 $
TWIN SHAFT CONCRETE MIXERS TYPES

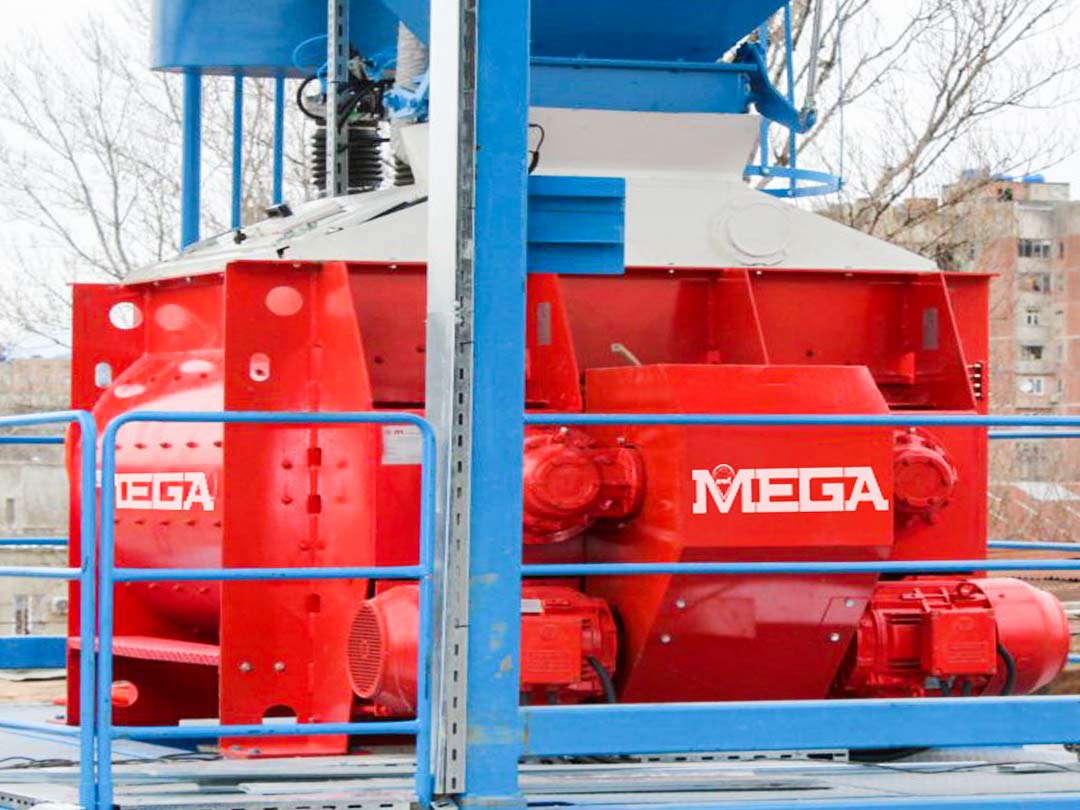

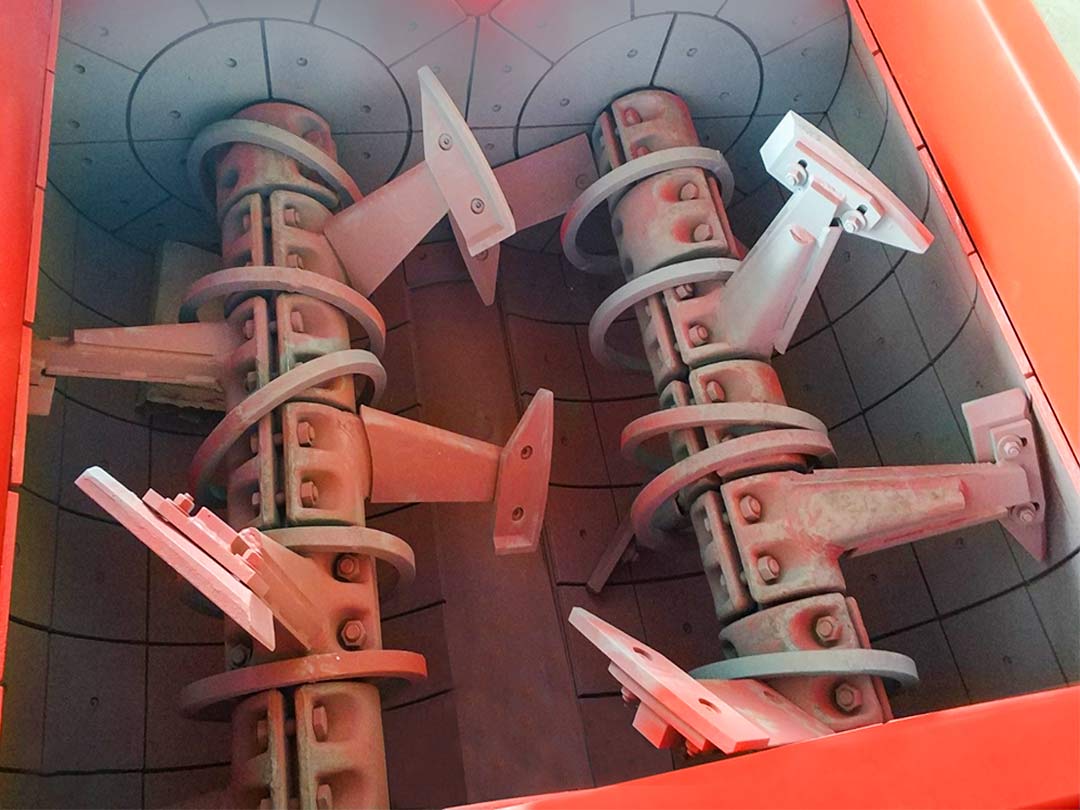

60 m3 / h Capacity Concrete Mixer
(Twin Shaft Type)
| MIXER TYPE | TWIN SHAFT MIXER (ITALIAN) – 6+6 MIXING ARM |
| INTERNAL VOLUME CAPACITY | 1500 L |
| WET CONCRETE CAPACITY | 1000 L – TOTAL WEIGHT OF 2400 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 500 L – TOTAL WEIGHT OF 1200 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | SINGLE OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 2×18,5 KW – ECHTOP IE2 |
| REDUCER | BREVINI – PLANETARY |
| BEARING | SPECIAL CASTING BODY – AUTOMATIC LUBRICATION |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 15 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| AUTOMATIC LUBRICATION | DIGITAL DISPLAY AND PROGRAMMABLE |
50,856 $
43,227 $
90 m3 / h Capacity Concrete Mixer
(Twin Shaft Type)
| MIXER TYPE | TWIN SHAFT MIXER (ITALIAN) – 8+8 MIXING ARM |
| INTERNAL VOLUME CAPACITY | 2250 L |
| WET CONCRETE CAPACITY | 1500 L – TOTAL WEIGHT OF 2400 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 800 L – TOTAL WEIGHT OF 1200 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | SINGLE OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 2×22 KW – ECHTOP IE2 |
| REDUCER | BREVINI – PLANETARY |
| BEARING | SPECIAL CASTING BODY – AUTOMATIC LUBRICATION |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 15 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| AUTOMATIC LUBRICATION | DIGITAL DISPLAY AND PROGRAMMABLE |
58,213 $
49,481 $
120 m3 / h Capacity Concrete Mixer
(Twin Shaft Type)
| MIXER TYPE | TWIN SHAFT MIXER (ITALIAN) – 6+6 MIXING ARM |
| INTERNAL VOLUME CAPACITY | 3000 L |
| WET CONCRETE CAPACITY | 2000 L – TOTAL WEIGHT OF 4800 KG READY MIX CONCRETE |
| DRY CONCRETE CAPACITY | 1200 L – TOTAL WEIGHT OF 2800 KG, PAVER, BLOCK CONCRETE |
| DISCHARGE GATE | SINGLE OUTPUT – DOUBLE ACTION AND LOCKED VALVE / 24 V DC |
| COVER DRIVE | ø50 X 300 HYDRAULIC PISTON x 3 PCS |
| COVER CONTROL | LOCKED VALVE / 24V DC – STAGE DISCHARGE / OXIM |
| ELECTRIC MOTOR | 2×37 KW – ECHTOP IE2 |
| REDUCER | BREVINI – PLANETARY |
| BEARING | SPECIAL CASTING BODY – AUTOMATIC LUBRICATION |
| MAINTENANCE COVER | 1 PIECE – WITH SAFETY SENSOR |
| BASE WEAR PLATE | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| SIDE WEAR PLATE | 15 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| MIXER PALLETS | 25 mm NI HARD CASTING – REPLACEABLE – BOLTED |
| AUTOMATIC LUBRICATION | DIGITAL DISPLAY AND PROGRAMMABLE |
