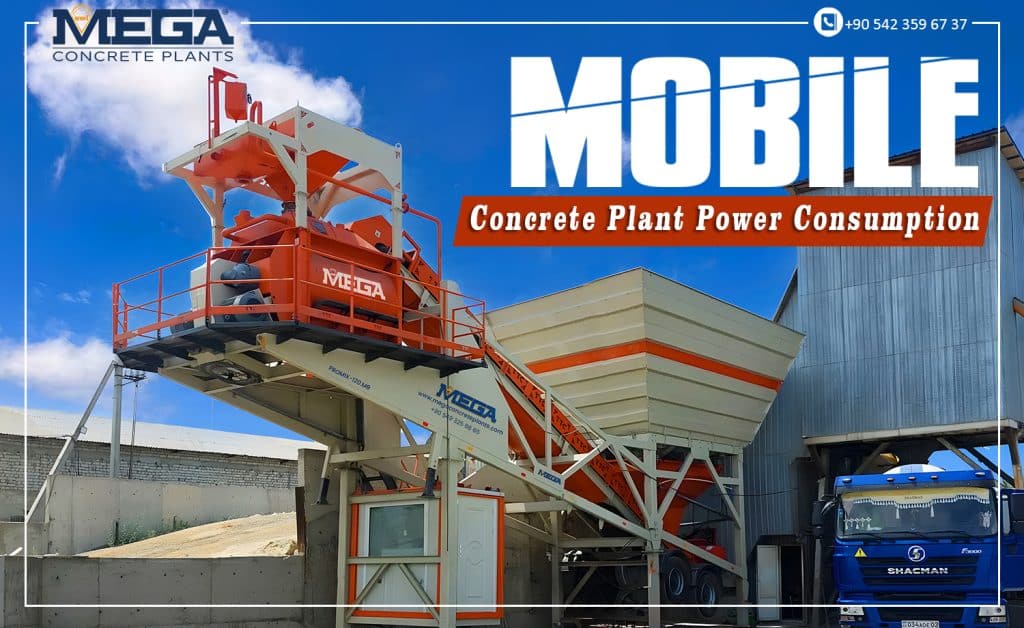

Power Consumption of Mobile Concrete Plants
Introduction
At MEGA Concrete Plants, we understand that the power consumption of mobile concrete plants is a crucial factor affecting both operational costs and environmental impact. One of the main components of the concrete plant is the electricity generator in case of the absence of electricity support where the plant is going to be operated. There are many other components that customers need to take into account before shaping their project’s budget.
By understanding the power requirements of various components and optimizing their usage, significant savings and efficiency improvements can be achieved.
Key Components And Their Power Requirements
DO NOT FORGET, MOBILE PLANTS REQUIRE DIFFERENT POWER AMOUNTS AS THEIR PRODUCTION CAPACITIES.
The Plant: This includes mixers, conveyors, and batching equipment.
Mixers: Typically consume between 37-110 kW.
Conveyors: Power requirements range from 11-30 kW.
Vibro Motors: It’s around 0,5-1 kW.
Water Pump: Essential for mixing concrete. Approximately 5-10 kW.
Compressor: Used for pneumatic systems in the plant. Typically 4-8 kW.
Control Systems: Automated systems for managing operations. Around 0,5-1 kW.
Cement Silo: Screw conveyor for transferring the cement to mixer. Due to the length of the conveyor the power consumption changes. 7.5-11 kW.
Auxiliary Equipment: Includes lighting, ventilation, and other miscellaneous equipment. Generally around 5-10 kW.
Total Power Consumption Of Mobile Concrete Plant
To estimate the total power consumption, sum the power requirements of all components while considering the power consumption at full capacity. For our plant which produces 60m^3 concrete per hour, the total power consumption might look like this:
For example, for a mid-sized mobile concrete plant:
Mixers: 70 kW (avg.)
Conveyors: 20 kW (avg.)
Vibro Motors: 0.5 kW (avg.)
Water Pump: 7.5 kW (avg)
Compressor: 6 kW (avg)
Control Systems: 0.75 kW (avg)
Cement Silo: 9.25 kW (avg)
Auxiliary Equipment: 7.5 kW (avg)
Estimated Total Power Consumption = 121.5 kW (avg)
Each concrete plant manufacturer has different power consumption values due to their design, so be sure to ask for the power consumption of the product you are purchasing.
Choosing the Right Generator Capacity
Selecting the right generator for a mobile concrete plant is crucial. It must handle the total power consumption while providing a buffer for peak loads and potential expansions. Here’s how to do it:
Calculate Total Power Requirement: As calculated, a mid-sized plant requires approximately 121.5 kW.
Add a Safety Margin: Adding a safety margin of 20-30% is advisable to accommodate peak loads and ensure reliable operation.
For our example:
Generator Capacity = 121.5kW × 1.3 ≈ 158kW (+30%)
Therefore, a generator with a capacity of around 158 kW would be suitable for a mid-sized mobile concrete plant. Depending on specific requirements and operational practices, this capacity might vary.
Choosing the Right Cables
The correct choice of cables is crucial for safe and efficient power distribution.
Due to the power consumption the diameter and specifications of the cables should be considered.
Consider the following factors:
Current Rating: The cables must be rated for the current they will carry. Calculate the total current by dividing the total power consumption by the voltage (typically 380V for three-phase systems).
Cable Size: Ensure the cables can handle the calculated current. Use standard cable sizing charts to determine the appropriate size.
Insulation: Use cables with suitable insulation to protect against environmental factors and physical wear.
Flexibility: For mobile applications, flexible cables are preferable to withstand frequent movement and bending.
Compliance: Ensure all cables comply with local electrical standards and regulations.
Operational Factors
Several operational factors influence the power consumption:
Usage Duration: The plant’s daily operational hours significantly impact total energy consumption.
Efficiency: Modern, energy-efficient equipment can reduce overall power consumption.
Load Variability: Peak and off-peak operation times can affect the power usage pattern.
Conclusion
Understanding the power consumption of the plants and optimizing their operation can lead to considerable cost savings and efficiency improvements. By focusing on the power requirements of key components, choosing the right generator capacity, and selecting appropriate cables, operators can make informed decisions to enhance the overall performance and sustainability of their plants.
Tips for Optimization
Invest in Energy-Efficient Equipment: Use modern, energy-efficient mixers, conveyors, and other equipment to reduce power consumption.
Regular Maintenance: Ensure all equipment is regularly maintained for peak efficiency.
Monitor Power Usage: Use smart meters and monitoring systems to track and manage power consumption in real time.
Optimize Operational Hours: Schedule operations during off-peak hours to take advantage of lower energy rates.
Conduct Energy Audits: Regular audits can identify areas where energy is wasted and provide recommendations for improvement.
By implementing these strategies and choosing appropriately sized generators and cables, MEGA Concrete Plants can help both customers and operators achieve better energy efficiency, reduce operational costs, and minimize their environmental footprint.
