WEIGHING AND CONVEYOR BELT

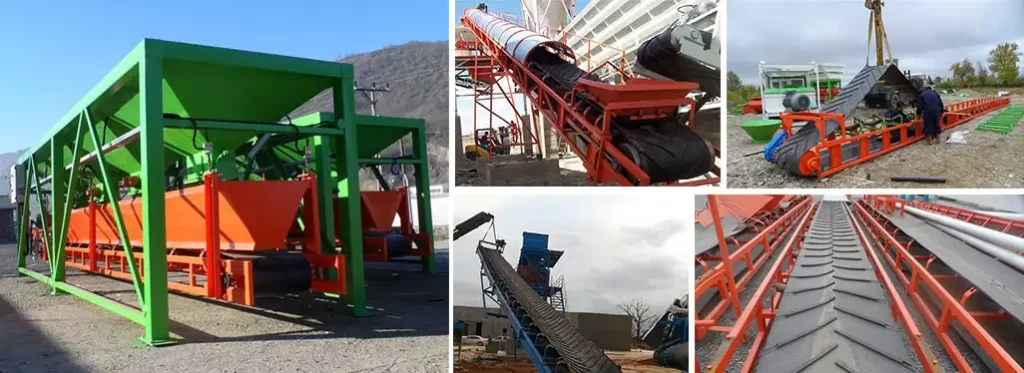

Weighing Belt Under Hoppers: It is the belt that allows the materials in the aggregate bunker to be weighed at the desired weight and transfers them to the aggregate transfer belt after the weighing process is completed. It is located just below the aggregate hopper. It consists of 5 separate components: weighing chamber, chassis, conveyor rubber and rollers, weighing system, motor reducer group. Aggreagate Transfer Belt: It is the equipment that transfers the dosed raw material coming from the electronic weighing belt to the waiting bunker. The bottom of the bunker is positioned at the end of the weighing belt.
WEIGHEING BELT UNDER HOPPERS TYPES
1500 Kg Weighing Belt
| CAPACITY | 1500 KG – (3×8 m³ = 24 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 1000 KG x 4 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3 mm SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 120 / EA 7200 x BG 600 mm – 4 LAYERS OF 10 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 4 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 1 |
3200 Kg Weighing Belt
| CAPACITY | 3200 KG – (3×15 m³ = 45 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 4 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3 mm SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 160 / EA 9800 x BG 800 mm – 4 LAYERS OF 10 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 7,5 – 11 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 1 |
5000 Kg Weighing Belt
| CAPACITY | 5000 KG – (3×20 m³ = 60 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 6 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3 mm SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 200 / EA 9800 x BG 800 mm – 4 LAYERS OF 10 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 15 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 1 |
6000 Kg Weighing Belt
| CAPACITY | 6000 KG – (3×25 m³ = 75 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 6 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3×25 SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 200 / EA 9800 x BG 1200 mm – 4 LAYERS OF 12 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 18,5 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 2 |
6000 Kg Weighing Belt
| CAPACITY | 6000 KG – (3×30 m³ = 90 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 6 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3×30 SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 200 / EA 9800 x BG 1200 mm – 4 LAYERS OF 12 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 18,5 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 2 |
3200 Kg Weighing Belt
| CAPACITY | 3200 KG – (4×15 m³ = 60 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 4 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3 mm SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 160 / EA 12600 x BG 800 mm – 4 LAYERS OF 10 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 7,5 – 11 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 1 |
5000 Kg Weighing Belt
| CAPACITY | 5000 KG – (4×20 m³ = 80 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 6 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 3 mm SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 200 / EA 12600 x BG 1000 mm – 4 LAYERS OF 10 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 15 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 1 |
6000 Kg Weighing Belt
| CAPACITY | 6000 KG – (4×25 m³ = 100 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 6 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 4×25 SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 200 / EA 12600 x BG 1200 mm – 4 LAYERS OF 12 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 18,5 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 2 |
6000 Kg Weighing Belt
| CAPACITY | 6000 KG – (4×30 m³ = 120 m³ capacity bunker) |
| WEIGHING EQUIPMENT | 2000 KG x 6 PCS / TUNA – S TYPE LOAD CELL – ADJUSTABLE CONNECTION |
| WEIGHING HOPPER | 4X30 SPECIAL BENDING SHEET |
| FLOW CONTROL VALVES | 3 mm 120° – CHAIN DISTANCE ADJUSTMENT |
| BELT CHASSIS AND TIRE SIZE | NPU 200 / EA 12600 x BG 1200 mm – 4 LAYERS OF 12 mm |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 18,5 KW GEAR MOTOR |
| VIBROMOTOR | AVM 300/3 x 2 |
AGGREGATE CONVEYOR BELT TYPES
90 Tons Conveyor Belt
| CAPACITY | 90 TONS / HOUR |
| BAND CHASSIS – DIMENSIONS AND CHARACTERISTICS | NPU 120 / EA 26500 x BG 600 mm – 4 LAYERS OF 10 mm |
| BAND LEGS | CONNECTED FROM 4 PLACES – ADJUSTABLE |
| BELT SLIP BACKSTOP | 24 VOLT AIR COOLED BRAKE SYSTEM |
| DRUM PULLEY BEARING | SNH 211 – BALL BEARING |
| TENSIONER DRUM PULLEY BEARING | UCT 210 |
| CONVEYOR ROLLER | ø60×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 11 KW GEAR MOTOR |
160-220 Tons Conveyor Belt
| CAPACITY | 160 – 220 TONS / HOUR |
| BAND CHASSIS – DIMENSIONS AND CHARACTERISTICS | NPU 200 / EA 30000 x BG 800 mm – 5 LAYERS OF 12 mm |
| BAND LEGS | CONNECTED FROM 4 PLACES – ADJUSTABLE |
| BELT SLIP BACKSTOP | ONE-WAY LOCK ON THE REDUCER |
| DRUM PULLEY BEARING | SNH 519 – BALL BEARING |
| TENSIONER DRUM PULLEY BEARING | UCT 216 |
| CONVEYOR ROLLER | ø89×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 30 KW GEAR MOTOR |
220 Tons Conveyor Belt
| CAPACITY | 220 TONS / HOUR |
| BAND CHASSIS – DIMENSIONS AND CHARACTERISTICS | NPU 200 / EA 30000 x BG 1000 mm – 5 LAYERS OF 12 mm |
| BAND LEGS | CONNECTED FROM 4 PLACES – ADJUSTABLE |
| BELT SLIP BACKSTOP | ONE-WAY LOCK ON THE REDUCER |
| DRUM PULLEY BEARING | SNH 519 – BALL BEARING |
| TENSIONER DRUM PULLEY BEARING | UCT 216 |
| CONVEYOR ROLLER | ø89×300 BEARING WITH DUST RETAINING COVER |
| DRIVE | 37 KW GEAR ENGINE – DG2 -380 DISSAN BRAND |
