Concrete batching plants are the backbone of construction projects, providing the quality concrete necessary for everything from skyscrapers to highways. But behind every successful batch plant lies a masterfully designed layout that delivers efficiency, safety, and environmental responsibility.
Whether you’re building a mobile plant for an instant project or a fixed plant for mass production, the layout is crucial.
In this comprehensive guide, we’ll walk you through the most critical principles, elements, and strategies in creating a concrete batching plant layout that is capable of delivering high productivity at low cost and environmental impact.
Let’s get started and see how to design a layout that is workable for your requirements.👍
Why a Well-Designed Concrete Batching Plant Layout Important?
A poorly designed concrete batching plant layout can result in inefficiencies, safety risks, and higher operation costs. Picture trucks queuing in traffic jams inside your site, materials becoming contaminated, or production bottlenecks delaying your progress. It does this through efficient product material flow, easy vehicle access, and compliance with safety and environmental needs. It also sets the foundation for scalability so that you may extend when demand grows. By increasing efficiency and forward-looking prioritization, you can save time, reduce energy consumption, and maintain your workers’ safety.
Key Principles for an Effective Layout
To create a concrete batching plant layout that performs, you need to follow a few basic principles. These hints will help you optimize your site for productivity and lifespan.
Click here to see more technical details about 120.TW Stationary Concrete Batching Plant
1. Strategic Site Selection
Site selection is the first step toward designing your plant. Look for an area close to highways to minimize the cost of transporting materials like aggregates, sand, and cement, and for transporting finished concrete. Being close to sources of water is also essential because water is required for cleaning and mixing operations.
Select a flat, raised area to avoid drainage issues in case of heavy rainfall, which can disrupt production and ruin materials. Finally, stay away from residential areas to keep the impact of dust and noise to a minimum, following local regulations.
2. Simplified Process Flow
Efficiency is about minimizing unnecessary movement.
Design your equipment to follow the natural sequence of concrete production: material storage, weighing, mixing, and loading. Avoid counterflow—materials or vehicles moving backward through the process—because it causes delay. For example, place aggregate piles near the ground hopper and conveyor belts so materials do not have to travel far. Not only is this time-efficient, but also saves energy costs.
3. Optimum Use of Terrain
Make your site’s topography work for you, saving space and resources. A more compact layout reduces the footprint of your plant, and you’ll have room to take expansion on down the line. Leave enough room for aggregate piles since they take up a lot of space. If your terrain is irregular, use it to your advantage—i.e., placing storage bins on a higher elevation can facilitate material loading.

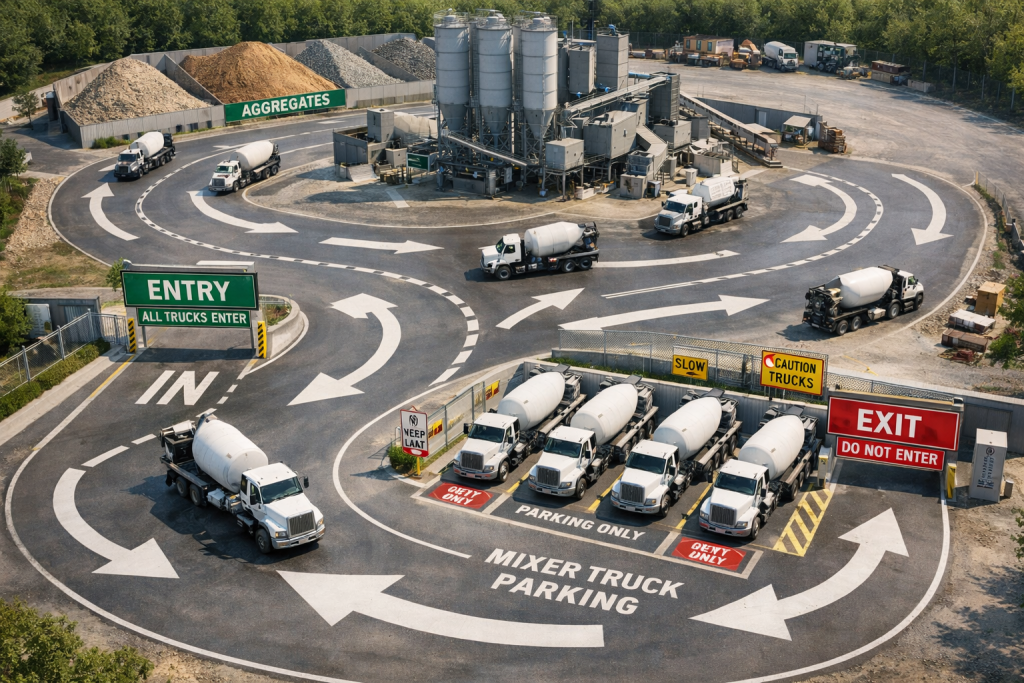

4. Vehicle Access and Traffic Control
Concrete batch plants have heavy traffic from mixer trucks, aggregate trailers, and other equipment. Design wide roads with separate entry and exit gates to ensure smooth traffic flow. Implement a counterclockwise traffic pattern as it leaves drivers on the same side of stockpiles, promoting safety and visibility. Provide sufficient space for mixer trucks to pass through and park, and use good signage to prevent haphazard parking that could obstruct your site.
5. Environmental and Safety Compliance
Environmental and safety concerns are a foregone conclusion. Locate living spaces like offices and break rooms to the windward side in order to shield workers from dust. The ground should be hardened in the sand and gravel area to prevent contamination, such as mud mixing with the aggregates..
6. Planning for Future Growth
Future-proof design allows for future expansion.
Design your plant in stages, so you can increase production capacity when necessary. For example, leave space for additional silos or bins to accommodate increasing demand. Use local voltage-compatible electrical equipment to conserve energy and make it easy to upgrade in the future.
Key Elements of a Concrete Batching Plant Design
The well-designed layout consists of several key components, each strategically positioned to optimize production flow. The following is a description of the major components and their positioning:
1. Aggregate Hopper
Sand, gravel, and coarse aggregates constitute the majority of concrete. Store them separately in bins with separators to prevent mixing. Position the stockpiles near the ground hopper to enable wheel loaders to transfer material into conveyors comfortably. This will reduce handling time and keep the production line running. Weighting belts are placed under these hoppers that have a different number of sections.
2. Conveyors
Conveyors are the veins of the plant, transferring aggregates from hoppers to the mixer. Place them in such a manner to minimize material travel length, with a free flow without any narrow points.
3. Cement Silos
Cement silos contain materials like normal cement, pulverized fuel ash (PFA), or slag in the dry form. Position them close to the weighing hoppers on the concrete mixer to maximize the transfer operation. By placing them appropriately, the likelihood of material loss is reduced and proper batching is ensured. Screw conveyors need to be taken into consideration when placing silos. Make sure you have a suitable screw conveyor along with its equipment.
4. Mixer and Platform
The mixer is the heart of the concrete plant, mixing material into good quality concrete. In wet mix plants, the mixer produces the finished product, and in dry mix plants, material is placed on trucks to be mixed en route. Place the mixer in the center, with conveyors and hoppers feeding directly into it, and an open truck-loading area in front.
5- Control Systems
Advanced batching plants rely on automatic control systems to batch correctly. Place these systems in a control room near the mixer to simplify monitoring. Automation reduces human error and gives consistent concrete quality.
6- Loading Area
Where mixer trucks (transmixers) are loaded with concrete, place the loading area in front of the mixing tower to access it easily, with enough space for several trucks to line up without causing congestion.
7- Parking and Support Facilities
Allocate parking spaces for mixer trucks, concrete pumps, and office vehicles. Position residence areas like offices and break rooms in the direction of the wind to protect workers against dust and noise.
Mobile vs. Stationary Plants: What’s the Difference?
Your layout is determined by the plant you choose. Mobile batching plants (30–120 m³/h) are compact and towable and, as such, are ideal for off-site or short-duration work. Their layouts are designed with portability in mind, with easy-erect and easy-remove modular components. Fixed plants (up to 200 m³/h) are ideal for long-duration, large-scale works. They require more sophisticated layouts with larger stores and support facilities, but have larger production capacities.
Visit our blog to decide ” MOBILE OR STATIONARY CONCRETE BATCHING PLANT”
Mix Design and Quality Control
Precise design layout enables precise mix design—bringing cement, aggregates, and water together to project specifications. Include a QC laboratory to test concrete properties on a regular basis, keeping it consistent and to standards. Accuracy can also be enhanced by automated control systems, preventing waste and producing high-quality output.
Contemporary concrete batching plants are greatly dependent on automation. Automated systems enhance batching, weighing, and mixing with lower costs and fewer errors compared to manual labor. Position the control room for ease of observation of the whole process, with real-time monitoring for catching problems early.
Environmental Responsibility
Sustainability is an increasing issue in concrete production. Add reclaimers to recycle material and water, reducing waste. Harden pile sites to prevent contamination, and have adequate water storage to handle stormwater runoff. These measures not only help the environment but also cut operational costs.
Final Thoughts
Designing a successful concrete batching plant layout is both an art and a science. By sequencing site selection, process flow, truck access, and environmental requirements, you can create a plant that manufactures superior concrete at minimum cost and least risk. Whether you are building a portable plant for a one-time job or a permanent one for volume manufacturing, a well-designed layout is the key to success.
